CAP ALUM 5600UF 20% 6.3V RADIAL

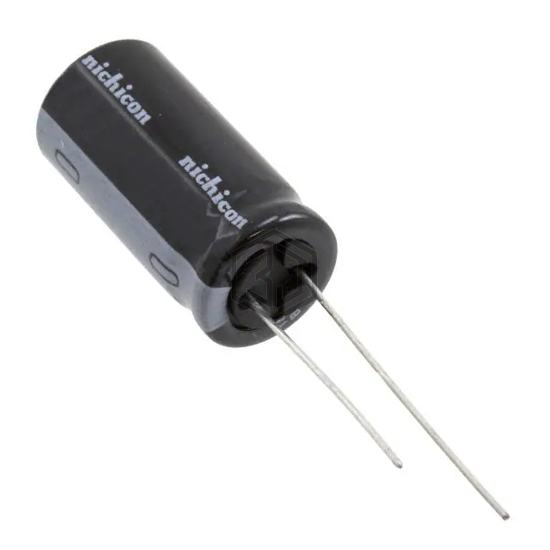

UHD0J562MHD6TN is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 5600UF 20% 6.3V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 6.3 V, package / case Radial, Can.
In Stock: 9,987
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 5600 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.512 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.14 A @ 100 kHz |
| Impedance | 18 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UHD0J562MHD6TN is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 6.3YXG5600MEFC12.5X35 | Rubycon | CAP ALUM 5600UF 20% 6.3V RADIAL | 92% | View |
| 568KXM6R3M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 5600UF 20% 6.3V RADIAL | 86% | View |
| 860080280025 | Würth Elektronik | CAP ALUM 5600UF 20% 10V RADIAL | 82% | View |
| EKYA6R3ELL562MK25S | United Chemi-Con | CAP ALUM 5600UF 20% 6.3V RADIAL | 82% | View |
| MAL214665562E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 5600UF 20% 16V RADIAL | 73% | View |
| EKMH250VSN562MP25U | United Chemi-Con | CAP ALUM 5600UF 20% 25V SNAP | 55% | View |
Submit your RFQ for UHD0J562MHD6TN and get a quote within 24 hours.
