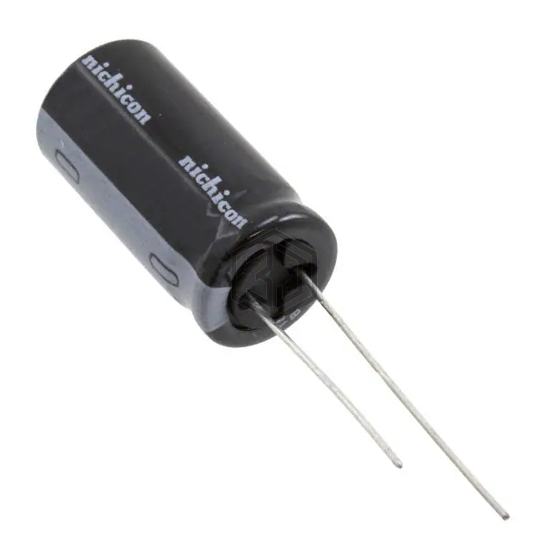

CAP ALUM 5600UF 20% 6.3V RADIAL
UHD0J562MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 5600UF 20% 6.3V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 6.3 V, package / case Radial, Can.
In Stock: 3,579
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 5600 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.72 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.4 A @ 100 kHz |
| Impedance | 15 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.476" (37.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UHD0J562MHD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UHW0J562MHD6 | Nichicon | CAP ALUM 5600UF 20% 6.3V RADIAL | 97% | View |
| UHD0J562MHD6 | Nichicon | CAP ALUM 5600UF 20% 6.3V RADIAL | 94% | View |
| B41888C3568M008 | EPCOS - TDK Electronics | CAP ALUM 5600UF 20% 10V RADIAL | 82% | View |
| 6.3YXH5600MEFC16X20 | Rubycon | CAP ALUM 5600UF 20% 6.3V RADIAL | 78% | View |
| UPJ0J562MHD | Nichicon | CAP ALUM 5600UF 20% 6.3V RADIAL | 77% | View |
| LXZ25VB562M18X40LL | United Chemi-Con | CAP ALUM 5600UF 20% 25V RADIAL | 76% | View |
Submit your RFQ for UHD0J562MHD and get a quote within 24 hours.
