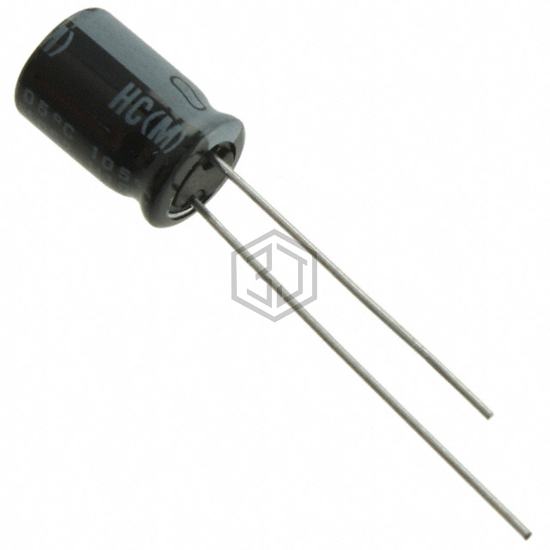

CAP ALUM 330UF 20% 10V RADIAL
UHC1A331MPD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 330UF 20% 10V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 10 V, package / case Radial, Can.
In Stock: 7,976
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 330 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | High Temperature Reflow |
| Ripple Current @ Low Frequency | 427.7 mA @ 120 Hz |
| Ripple Current @ High Frequency | 910 mA @ 100 kHz |
| Impedance | 43 mOhms |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.453" (11.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UHC1A331MPD is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| RUA331M1ABK-1016S | Surge | CAP ALUM 10V POLAR | 98% | View |
| MAL212364331E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 330UF 20% 10V AXIAL | 79% | View |
| 678D337M040DM4D | Vishay Sprague | CAP ALUM 330UF 20% 40V RADIAL | 67% | View |
| B41858C3337M | EPCOS - TDK Electronics | CAP ALUM 330UF 20% 10V RADIAL | 63% | View |
| MAL214061331E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 330UF 20% 50V RADIAL | 60% | View |
| 25YXJ330MTA8X11.5 | Rubycon | CAP ALUM 330UF 20% 25V RADIAL | 58% | View |
