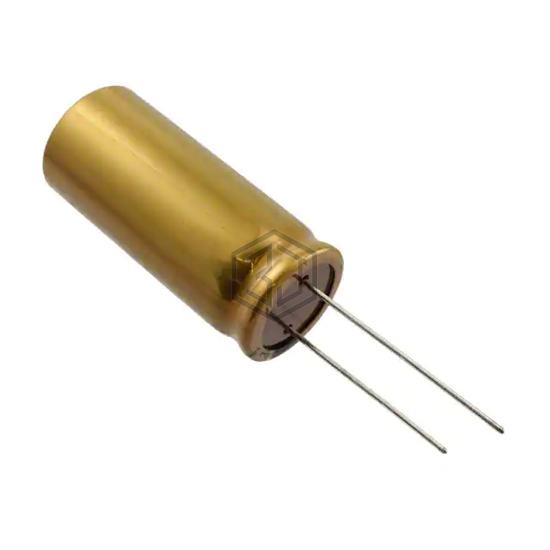

CAP ALUM 6800UF 20% 50V RADIAL
UFW1H682MRD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 6800UF 20% 50V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 50 V, package / case Radial, Can.
In Stock: 8,932
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 6800 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Audio |
| Ripple Current @ Low Frequency | 3.5 A @ 120 Hz |
| Ripple Current @ High Frequency | 4.025 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 1.969" (50.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UFW1H682MRD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKMH500VSN682MA30T | United Chemi-Con | CAP ALUM 6800UF 20% 50V SNAP | 95% | View |
| 688LBB063M2CH | Cornell Dubilier / Illinois Capacitor | CAP ALUM 6800UF 20% 63V SNAP | 81% | View |
| MAL215882682E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 6800UF 20% 80V SNAP | 73% | View |
| NEV6800M16II | NTE Electronics, Inc | CAP ALUM 6800UF 20% 16V RADIAL | 56% | View |
| 500D688M6R3GK2 | Vishay Sprague | CAP ALUM 6800UF 20% 6.3V AXIAL | 56% | View |
| LKS1E682MESB | Nichicon | CAP ALUM 6800UF 20% 25V SNAP | 52% | View |
Submit your RFQ for UFW1H682MRD and get a quote within 24 hours.
