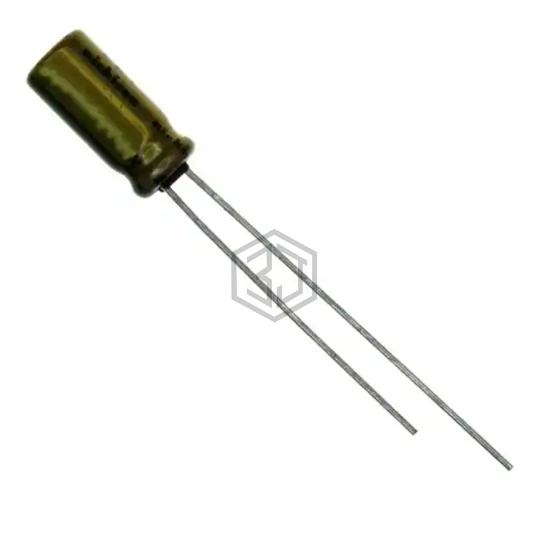

CAP ALUM 4.7UF 20% 50V RADIAL
UFW1H4R7MDD1TA is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 4.7UF 20% 50V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 50 V, package / case Radial, Can.
In Stock: 8,403
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 4.7 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Audio |
| Ripple Current @ Low Frequency | 40 mA @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.492" (12.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UFW1H4R7MDD1TA is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ESE475M050AC3FA | KEMET | CAP ALUM RAD 105C | 91% | View |
| USP1H4R7MDD1TP | Nichicon | CAP ALUM 4.7UF 20% 50V RADIAL | 87% | View |
| MAL212327478E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 4.7UF 20% 40V AXIAL | 71% | View |
| UEP1V4R7MDD1TA | Nichicon | CAP ALUM 4.7UF 20% 35V RADIAL | 70% | View |
| 860130873005 | Würth Elektronik | CAP ALUM 4.7UF 20% 100V RADIAL | 70% | View |
| ELE-101ELL4R7ME11D | United Chemi-Con | CAP ALUM 4.7UF 20% 100V RADIAL | 61% | View |
Submit your RFQ for UFW1H4R7MDD1TA and get a quote within 24 hours.
