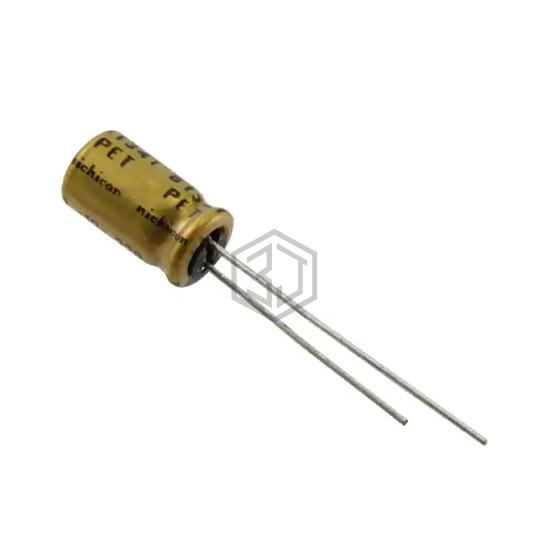

CAP ALUM 220UF 20% 16V RADIAL
UFW1C221MED1TA is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 220UF 20% 16V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 8,054
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 220 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Audio |
| Ripple Current @ Low Frequency | 250 mA @ 120 Hz |
| Ripple Current @ High Frequency | 375 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.492" (12.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UFW1C221MED1TA is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B41821F4227M7 | EPCOS - TDK Electronics | CAP ALUM 220UF 20% 16V RADIAL | 99% | View |
| 860020373010 | Würth Elektronik | CAP ALUM 220UF 20% 16V RADIAL | 91% | View |
| UVK1A221MDD1TD | Nichicon | CAP ALUM 220UF 20% 10V RADIAL TH | 80% | View |
| 227HSM025M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 220UF 20% 25V RADIAL | 75% | View |
| RXW221M1EBK-0811S | SURGE | CAP ALUM 220UF 20% 25V RADIAL | 69% | View |
| EEU-FC1E221B | Panasonic Electronic Components | CAP ALUM 220UF 20% 25V RADIAL | 68% | View |
Submit your RFQ for UFW1C221MED1TA and get a quote within 24 hours.
