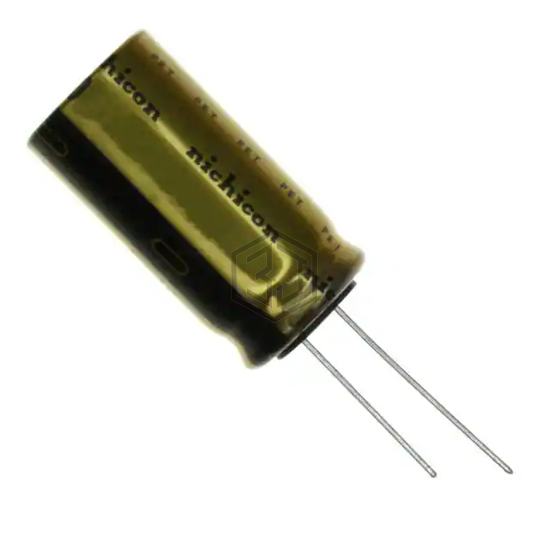

CAP ALUM 10000UF 20% 16V RADIAL
UFW1C103MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 10000UF 20% 16V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 7,312
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 10000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Audio |
| Ripple Current @ Low Frequency | 2.64 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.036 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 1.398" (35.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UFW1C103MHD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL202145103E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 10000UF 20% 16V SNAP | 94% | View |
| MALIEYN07LU510D02K | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 10000UF 20% 16V SNAP | 93% | View |
| UVR1A103MHA | Nichicon | CAP ALUM 10000UF 20% 10V RADIAL | 85% | View |
| 25PK10000MEFC18X35.5 | Rubycon | CAP ALUM 10000UF 20% 25V RADIAL | 82% | View |
| LKS1V103MESB | Nichicon | CAP ALUM 10000UF 20% 35V SNAP | 68% | View |
| B41231B7109M000 | EPCOS - TDK Electronics | CAP ALUM 10000UF 20% 35V SNAP | 53% | View |
Submit your RFQ for UFW1C103MHD and get a quote within 24 hours.
