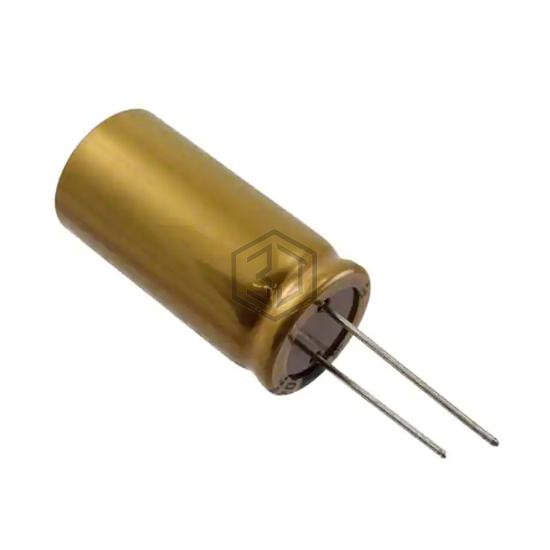

CAP ALUM 22000UF 20% 10V RADIAL
UFW1A223MRD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 22000UF 20% 10V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 10 V, package / case Radial, Can.
In Stock: 1,969
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 22000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Audio |
| Ripple Current @ Low Frequency | 3.7 A @ 120 Hz |
| Ripple Current @ High Frequency | 4.255 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.787" Dia (20.00mm) |
| Height - Seated (Max) | 1.575" (40.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UFW1A223MRD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| SMH10VN223M25X30T2 | United Chemi-Con | CAP ALUM 22000UF 20% 10V SNAP | 96% | View |
| MAL205844223E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 22000UF 20% 10V SNAP | 92% | View |
| MAL205824223E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 22000UF 20% 10V SNAP | 92% | View |
| 25MXC22000MEFCSN25X50 | Rubycon | CAP ALUM 22000UF 20% 25V SNAP | 75% | View |
| 25MXC22000MEFC35X30 | Rubycon | CAP ALUM 22000UF 20% 25V SNAP | 75% | View |
| MAL215627223E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 22000UF 20% 40V SNAP | 60% | View |
