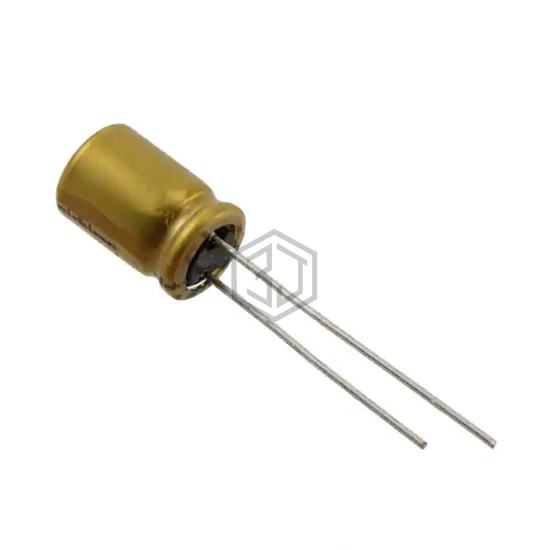

CAP ALUM 47UF 20% 35V RADIAL
UFG1V470MPM1TA is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 47UF 20% 35V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 35 V, package / case Radial, Can.
In Stock: 8,933
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 47 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Audio |
| Ripple Current @ Low Frequency | 101 mA @ 120 Hz |
| Ripple Current @ High Frequency | 202 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.512" (13.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UFG1V470MPM1TA is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B41821A7476M8 | EPCOS - TDK Electronics | CAP ALUM 47UF 20% 35V RADIAL | 92% | View |
| TBE1H470MCD1LW | Nichicon | CAP ALUM 47UF 20% 50V AXIAL | 77% | View |
| 50YXM47MEFR6.3X11 | Rubycon | CAP ALUM 47UF 20% 50V RADIAL TH | 77% | View |
| UVR1C470MDA | Nichicon | CAP ALUM 47UF 20% 16V RADIAL | 75% | View |
| URZ2A470MPD | Nichicon | CAP ALUM 47UF 20% 100V RADIAL | 55% | View |
| UAQ2D470MHD6TO | Nichicon | CAP ALUM 47UF 20% 200V RADIAL | 53% | View |
Submit your RFQ for UFG1V470MPM1TA and get a quote within 24 hours.
