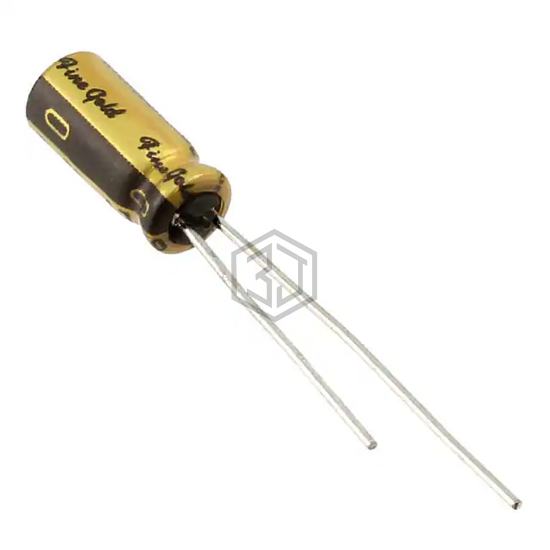

CAP ALUM 0.47UF 20% 50V RADIAL
UFG1HR47MDM1TD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 0.47UF 20% 50V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 50 V, package / case Radial, Can.
In Stock: 9,779
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 0.47 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Audio |
| Ripple Current @ Low Frequency | 5 mA @ 120 Hz |
| Ripple Current @ High Frequency | 10 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.098" (2.50mm) |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.492" (12.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UFG1HR47MDM1TD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| NPA.47M50 | NTE Electronics, Inc | CAP ALUM 0.47UF 20% 50V AXIAL | 100% | View |
| UKW1HR47MDD1TA | Nichicon | CAP ALUM 0.47UF 20% 50V RADIAL | 100% | View |
| URZ1HR47MDD | Nichicon | CAP ALUM 0.47UF 20% 50V RADIAL | 100% | View |
| ECE-A1HKAR47B | Panasonic Electronic Components | CAP ALUM 0.47UF 20% 50V RADIAL | 95% | View |
| USR1HR47MDD1TE | Nichicon | CAP ALUM 0.47UF 20% 50V RADIAL | 93% | View |
| KMG50VBR47M5X11LL | United Chemi-Con | CAP ALUM 0.47UF 20% 50V RADIAL | 84% | View |
