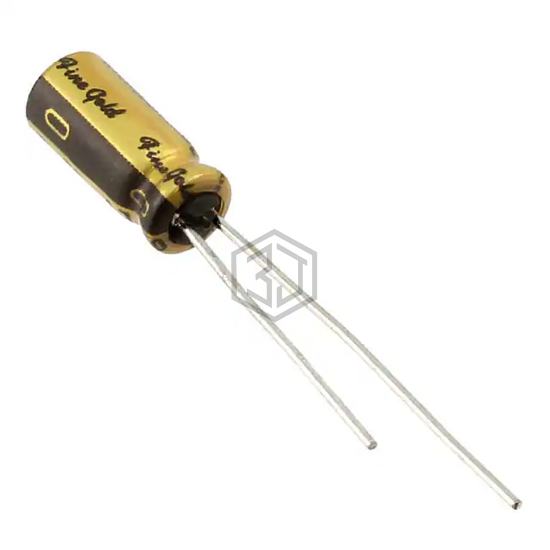

CAP ALUM 0.47UF 20% 50V RADIAL
UFG1HR47MDM is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 0.47UF 20% 50V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 50 V, package / case Radial, Can.
In Stock: 3,877
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 0.47 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Audio |
| Ripple Current @ Low Frequency | 5 mA @ 120 Hz |
| Ripple Current @ High Frequency | 10 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.079" (2.00mm) |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.492" (12.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UFG1HR47MDM is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UKW1HR47MDD1TA | Nichicon | CAP ALUM 0.47UF 20% 50V RADIAL | 100% | View |
| 50MS70.47MEFCTZ4X7 | Rubycon | CAP ALUM 0.47UF 20% 50V RADIAL | 100% | View |
| UPV1HR47MFD | Nichicon | CAP ALUM 0.47UF 20% 50V RADIAL | 100% | View |
| USR1HR47MDD1TE | Nichicon | CAP ALUM 0.47UF 20% 50V RADIAL | 93% | View |
| 474PGM050M | Cornell Dubilier Knowles | ELECTROLYTIC/IC | 93% | View |
| 50MH50.47MEFC4X5 | Rubycon | CAP ALUM 0.47UF 20% 50V RADIAL | 82% | View |
Submit your RFQ for UFG1HR47MDM and get a quote within 24 hours.
