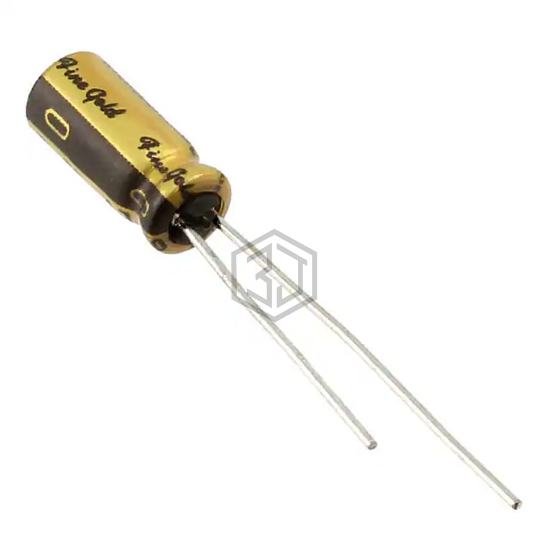

CAP ALUM 2.2UF 20% 50V RADIAL
UFG1H2R2MDM1TA is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 2.2UF 20% 50V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 50 V, package / case Radial, Can.
In Stock: 5,683
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 2.2 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Audio |
| Ripple Current @ Low Frequency | 18 mA @ 120 Hz |
| Ripple Current @ High Frequency | 36 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.492" (12.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UFG1H2R2MDM1TA is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEU-HD1H2R2 | Panasonic Electronic Components | CAP ALUM 2.2UF 20% 50V RADIAL | 100% | View |
| UVZ1H2R2MDD1TD | Nichicon | CAP ALUM 2.2UF 20% 50V RADIAL | 95% | View |
| UHE1H2R2MDD1TD | Nichicon | CAP ALUM 2.2UF 20% 50V RADIAL | 89% | View |
| MALREKB00AA122JM0K | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2.2UF 20% 63V RADIAL | 79% | View |
| UML1H2R2MDD | Nichicon | CAP ALUM 2.2UF 20% 50V RADIAL | 67% | View |
| 400PX2R2MEFC8X11.5 | Rubycon | CAP ALUM 2.2UF 20% 400V RADIAL | 54% | View |
Submit your RFQ for UFG1H2R2MDM1TA and get a quote within 24 hours.
