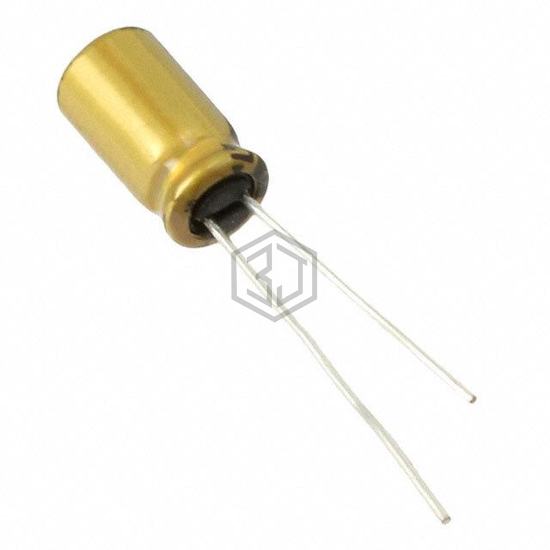

CAP ALUM 22UF 20% 50V RADIAL
UFG1H220MEM1TA is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 22UF 20% 50V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 50 V, package / case Radial, Can.
In Stock: 2,027
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Audio |
| Ripple Current @ Low Frequency | 65 mA @ 120 Hz |
| Ripple Current @ High Frequency | 130 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.098" (2.50mm) |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.492" (12.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UFG1H220MEM1TA is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ECE-A1VKA220I | Panasonic Electronic Components | CAP ALUM 22UF 20% 35V RADIAL | 81% | View |
| MAL202128229E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 22UF 20% 63V AXIAL | 80% | View |
| MAL203026229E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 22UF 25V AXIAL | 69% | View |
| ELXV101ETD220MH12D | United Chemi-Con | CAP ALUM 22UF 20% 100V RADIAL | 57% | View |
| 16TWL22KEFCTA6.3X11 | Rubycon | CAP ALUM 22UF 20% 16V RADIAL | 56% | View |
| UBT2C220MPD8 | Nichicon | CAP ALUM 22UF 20% 160V RADIAL | 54% | View |
