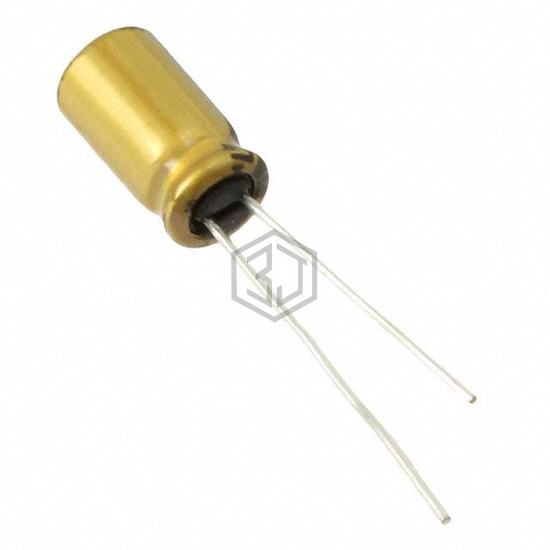

CAP ALUM 47UF 20% 25V RADIAL
UFG1E470MEM1TD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 47UF 20% 25V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 1,707
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 47 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Audio |
| Ripple Current @ Low Frequency | 85 mA @ 120 Hz |
| Ripple Current @ High Frequency | 170 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.098" (2.50mm) |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.492" (12.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UFG1E470MEM1TD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| USP1E470MDD | Nichicon | CAP ALUM 47UF 20% 25V RADIAL | 93% | View |
| UVZ1V470MDD1TD | Nichicon | CAP ALUM 47UF 20% 35V RADIAL | 85% | View |
| 35PX47MEFC5X11 | Rubycon | CAP ALUM 47UF 20% 35V RADIAL | 83% | View |
| 860240372002 | Würth Elektronik | CAP ALUM 47UF 20% 16V RADIAL | 79% | View |
| ECE-A0JN470UB | Panasonic Electronic Components | CAP ALUM 47UF 20% 6.3V RADIAL | 68% | View |
| EKMQ101EC3470MHB5D | United Chemi-Con | CAP ALUM 47UF 20% 100V RADIAL | 58% | View |
Submit your RFQ for UFG1E470MEM1TD and get a quote within 24 hours.
