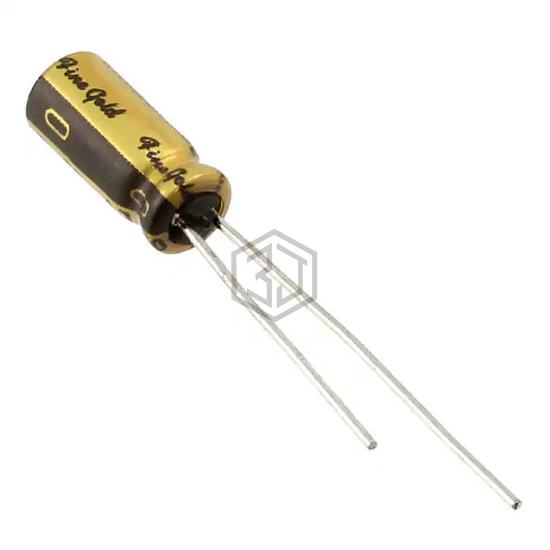

CAP ALUM 22UF 20% 25V RADIAL
UFG1E220MDM1TD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 22UF 20% 25V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 9,288
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Audio |
| Ripple Current @ Low Frequency | 50 mA @ 120 Hz |
| Ripple Current @ High Frequency | 100 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.098" (2.50mm) |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.492" (12.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UFG1E220MDM1TD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL203036229E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 22UF 25V AXIAL | 94% | View |
| 30D226M025BA5A | Vishay Sprague | CAP ALUM 22UF 20% 25V AXIAL | 91% | View |
| USV1V220MFD | Nichicon | CAP ALUM 22UF 20% 35V RADIAL | 83% | View |
| UMT1E220MDD | Nichicon | CAP ALUM 22UF 20% 25V RADIAL | 80% | View |
| 226RSS016M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 22UF 20% 16V RADIAL | 78% | View |
| EL1H220MC60511U | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 54% | View |
Submit your RFQ for UFG1E220MDM1TD and get a quote within 24 hours.
