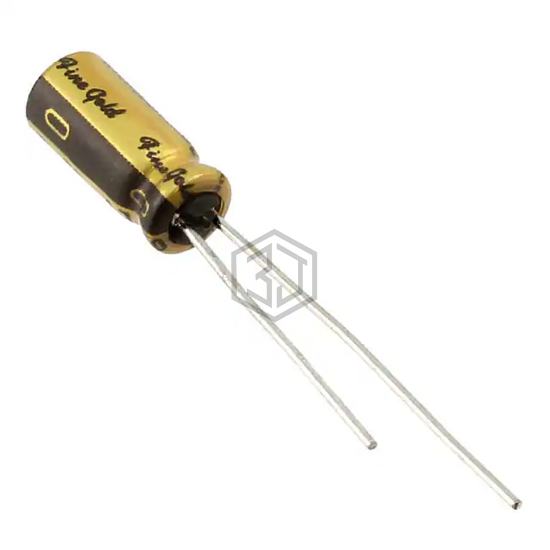

CAP ALUM 22UF 20% 25V RADIAL
UFG1E220MDM is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 22UF 20% 25V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 9,773
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Audio |
| Ripple Current @ Low Frequency | 50 mA @ 120 Hz |
| Ripple Current @ High Frequency | 100 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.079" (2.00mm) |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.492" (12.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UFG1E220MDM is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UEP1V220MED1TD | Nichicon | CAP ALUM 22UF 20% 35V RADIAL | 89% | View |
| UVP1E220MED1TD | Nichicon | CAP ALUM 22UF 20% 25V RADIAL | 87% | View |
| 50ML22MEFCT58X5 | Rubycon | CAP ALUM 22UF 20% 50V RADIAL | 72% | View |
| 16TWL22KEFC8X11.5 | Rubycon | CAP ALUM 22UF 10% 16V RADIAL | 71% | View |
| 860160572003 | Würth Elektronik | CAP ALUM 22UF 20% 35V RADIAL | 66% | View |
| 63PX22MEFC5X11 | Rubycon | CAP ALUM 22UF 20% 63V RADIAL | 63% | View |
