CAP ALUM 100UF 20% 25V RADIAL

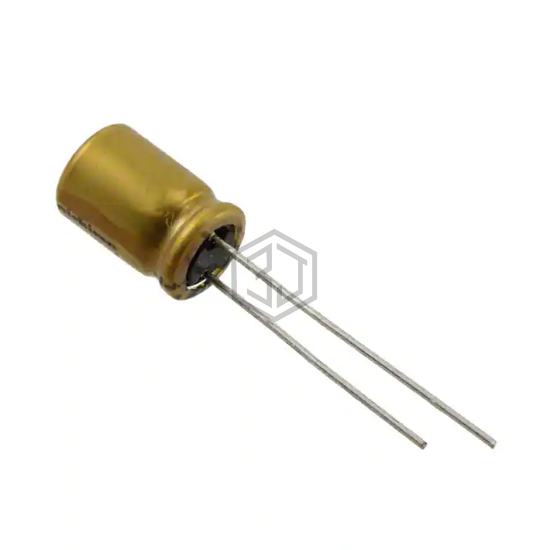

UFG1E101MPM1TA is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 100UF 20% 25V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 8,703
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 100 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Audio |
| Ripple Current @ Low Frequency | 140 mA @ 120 Hz |
| Ripple Current @ High Frequency | 210 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.512" (13.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UFG1E101MPM1TA is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B41002A5107M | EPCOS - TDK Electronics | CAP ALUM 100UF 20% 25V RADIAL | 97% | View |
| MALREKB05BA310F00K | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 100UF 20% 35V RADIAL | 82% | View |
| 516D107M010LL7BE3 | Vishay Sprague | CAP ALUM 100UF 20% 10V AXIAL | 75% | View |
| TBE1C101MCD1LT | Nichicon | CAP ALUM 100UF 20% 16V AXIAL | 71% | View |
| MAL214271101E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 100UF 20% 50V RADIAL | 65% | View |
| LGJ2D101MELY | Nichicon | CAP ALUM 100UF 20% 200V SNAP | 56% | View |
Submit your RFQ for UFG1E101MPM1TA and get a quote within 24 hours.
