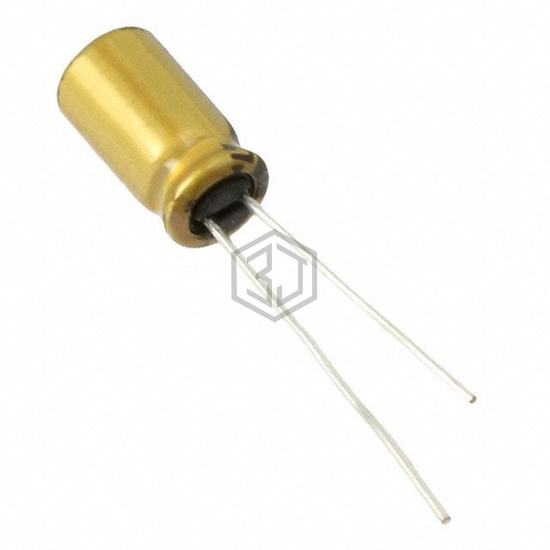

CAP ALUM 47UF 20% 16V RADIAL
UFG1C470MEM is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 47UF 20% 16V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 3,137
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 47 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Audio |
| Ripple Current @ Low Frequency | 74 mA @ 120 Hz |
| Ripple Current @ High Frequency | 148 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.098" (2.50mm) |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.492" (12.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UFG1C470MEM is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 516D476M016JL7BE3 | Vishay Sprague | CAP ALUM 47UF 20% 16V AXIAL | 93% | View |
| MAL214276479E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 47UF 20% 25V RADIAL | 81% | View |
| 10MH547MEFCTZ6.3X5 | Rubycon | CAP ALUM 47UF 20% 10V RADIAL | 62% | View |
| 50YXM47MEFRT16.3X11 | Rubycon | CAP ALUM 47UF 20% 50V RADIAL | 59% | View |
| 35NXA47MEFCT810X12.5 | Rubycon | CAP ALUM 47UF 20% 35V RADIAL | 56% | View |
| 476RZM050M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 47UF 20% 50V RADIAL | 56% | View |
