CAP ALUM 2200UF 20% 16V RADIAL

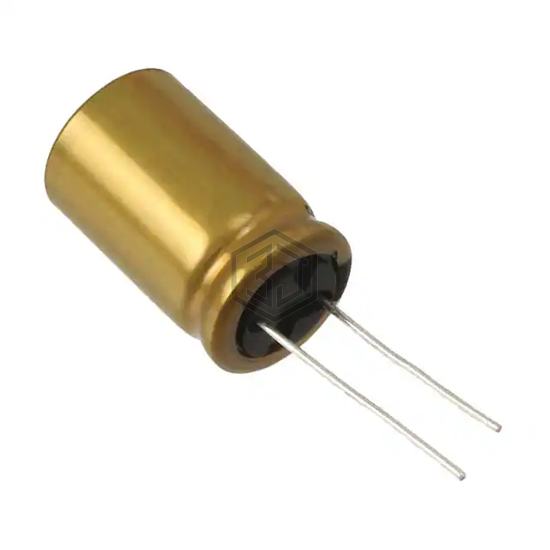

UFG1C222MHM1TO is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 2200UF 20% 16V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 8,259
| Attribute | Value |
|---|---|
| Product Status | Discontinued at Digi-Key |
| Capacitance | 2200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Audio |
| Ripple Current @ Low Frequency | 1.29 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.4835 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UFG1C222MHM1TO is Discontinued at Digi-Key. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ECE-A1CN222U | Panasonic Electronic Components | CAP ALUM 2200UF 20% 16V RADIAL | 83% | View |
| 16ZLS2200MEFC12.5X20 | Rubycon | CAP ALUM 2200UF 20% 16V RADIAL | 81% | View |
| UPA0J222MPD3 | Nichicon | CAP ALUM 2200UF 20% 6.3V RADIAL | 74% | View |
| SLP222M050A3P3 | Cornell Dubilier Electronics (CDE) | CAP ALUM 2200UF 20% 50V SNAP | 64% | View |
| URS0J222MHD1TO | Nichicon | CAP ALUM 2200UF 20% 6.3V RADIAL | 61% | View |
| 80MXG2200MEFCSN25X30 | Rubycon | CAP ALUM 2200UF 20% 80V SNAP | 57% | View |
