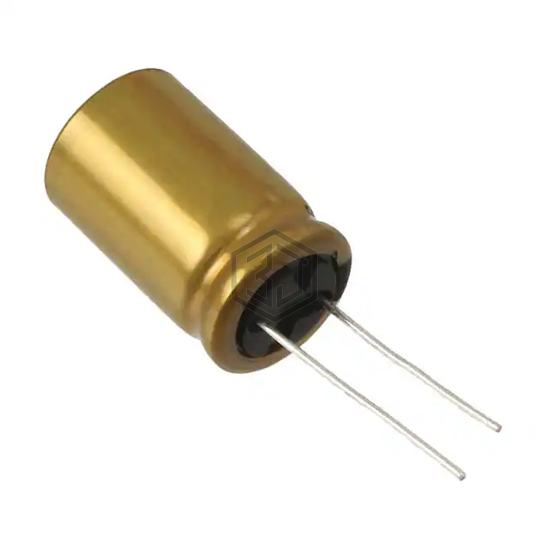

CAP ALUM 2200UF 20% 10V RADIAL
UFG1A222MHM1TO is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 2200UF 20% 10V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 10 V, package / case Radial, Can.
In Stock: 5,392
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 2200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Audio |
| Ripple Current @ Low Frequency | 1.047 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.20405 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ED1A222MNN1025 | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 88% | View |
| KY10VB222M10X30LL | United Chemi-Con | CAP ALUM 2200UF 20% 10V RADIAL | 81% | View |
| 10ZLH2200MEFCT810X23 | Rubycon | CAP ALUM 2200UF 20% 10V RADIAL | 75% | View |
| VHT2200M16 | NTE Electronics, Inc | CAP ALUM 2200UF 20% 16V RADIAL | 70% | View |
| MAL213846222E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2200UF 20% 25V SNAP | 64% | View |
| 860160378038 | Würth Elektronik | CAP ALUM 2200UF 20% 16V RADIAL | 63% | View |
