CAP ALUM 100UF 20% 10V RADIAL

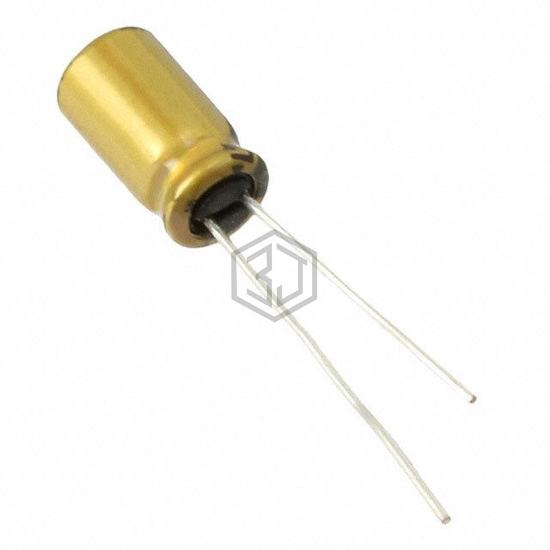

UFG1A101MEM1TA is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 100UF 20% 10V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 10 V, package / case Radial, Can.
In Stock: 2,751
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 100 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Audio |
| Ripple Current @ Low Frequency | 99 mA @ 120 Hz |
| Ripple Current @ High Frequency | 148.5 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.098" (2.50mm) |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.492" (12.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UFG1A101MEM1TA is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ESE107M016AC3AA | KEMET | CAP ALUM RAD 105C | 81% | View |
| ESE107M016AC3FA | KEMET | CAP ALUM RAD 105C | 81% | View |
| ESK107M010AC3DA | KEMET | CAP ALUM RAD 85C | 77% | View |
| 6.3MS7100MEFC5X7 | Rubycon | CAP ALUM 100UF 20% 6.3V RADIAL | 74% | View |
| ECE-A0GKS101 | Panasonic Electronic Components | CAP ALUM 100UF 20% 4V RADIAL | 59% | View |
| 4MS5100MEFCTZ5X5 | Rubycon | CAP ALUM 100UF 20% 4V RADIAL | 56% | View |
Submit your RFQ for UFG1A101MEM1TA and get a quote within 24 hours.
