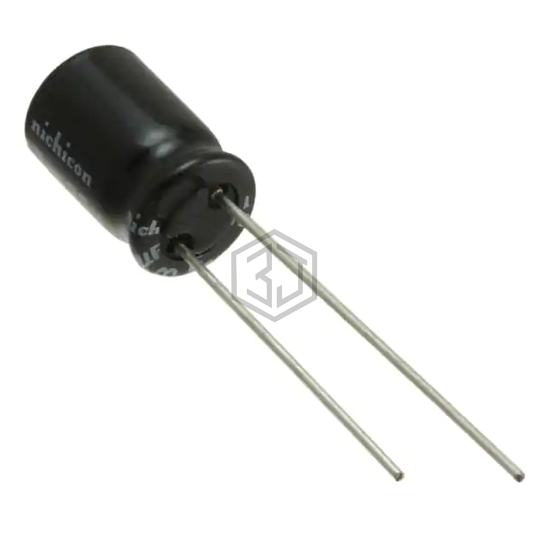

CAP ALUM 330UF 20% 25V RADIAL
UEP1E331MHD1TO is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 330UF 20% 25V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 1,884
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 330 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Bi-Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UEP1E331MHD1TO is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 600D337G030DL5 | Vishay Sprague | CAP ALUM 330UF 30V AXIAL | 88% | View |
| ELXY350ETD331MJ20S | United Chemi-Con | CAP ALUM 330UF 20% 35V RADIAL | 78% | View |
| B41858A7337M2 | EPCOS - TDK Electronics | CAP ALUM 330UF 20% 35V RADIAL | 78% | View |
| B41858D4337M006 | EPCOS - TDK Electronics | CAP ALUM 16V POLAR | 71% | View |
| MAL213668331E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 330UF 20% 63V RADIAL | 56% | View |
| EEU-FC2A331SB | Panasonic Electronic Components | CAP ALUM 330UF 20% 100V RADIAL | 56% | View |
