CAP ALUM 82UF 20% 100V SMD

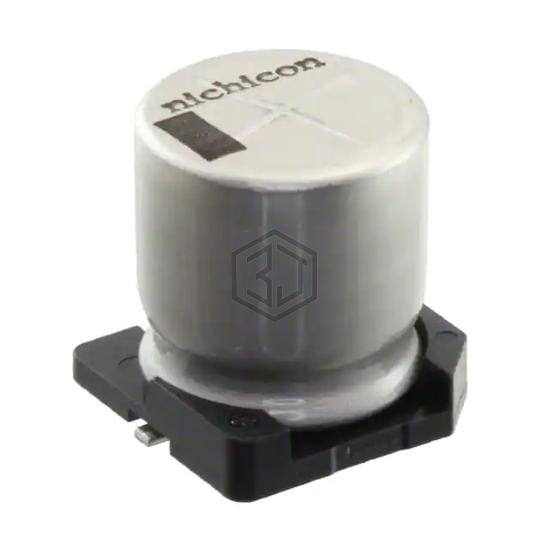

UCZ2A820MNQ1MS is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 82UF 20% 100V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - rated 100 V, package / case Radial, Can - SMD.
In Stock: 5,376
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 82 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | 280mOhm @ 100kHz |
| Lifetime @ Temp. | 3000 Hrs @ 125°C |
| Operating Temperature | -40°C ~ 125°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 350 mA @ 120 Hz |
| Ripple Current @ High Frequency | 700 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.571" (14.50mm) |
| Surface Mount Land Size | 0.535" L x 0.535" W (13.60mm x 13.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
UCZ2A820MNQ1MS is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UCZ2A820MNS1MS | Nichicon | CAP ALUM 82UF 20% 100V SMD | 100% | View |
| UCZ2A820MNQ1ZD | Nichicon | CAP ALUM 82UF 20% 100V SMD | 100% | View |
| UCZ2A820MNJ1MS | Nichicon | CAP ALUM 100V POLAR | 100% | View |
| UYA2A900MNJ1MS | Nichicon | CAP ALUM 90UF 20% 100V SMD | 93% | View |
| EMHS800ARA820MJA0G | Chemi-Con | CAP ALUM 80V POLAR | 80% | View |
| EMVH161ATR680MMN0S | United Chemi-Con | CAP ALUM 68UF 20% 160V SMD | 72% | View |
