CAP ALUM 680UF 20% 35V SMD

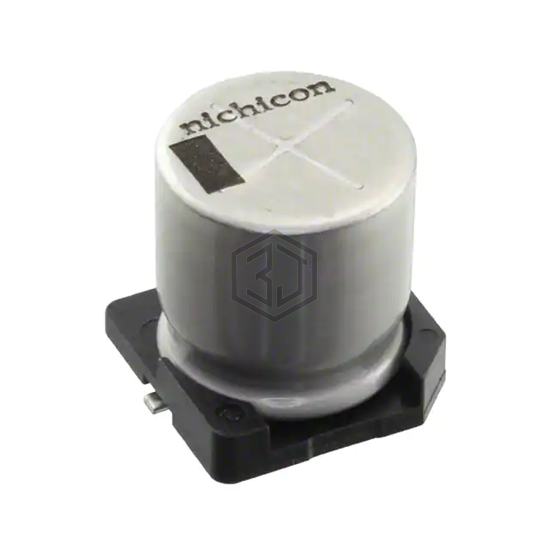

UCZ1V681MNQ1MS is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 680UF 20% 35V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - rated 35 V, package / case Radial, Can - SMD.
In Stock: 3,916
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 680 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | 60mOhm @ 100kHz |
| Lifetime @ Temp. | 3000 Hrs @ 125°C |
| Operating Temperature | -40°C ~ 125°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 850 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.7 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.571" (14.50mm) |
| Surface Mount Land Size | 0.535" L x 0.535" W (13.60mm x 13.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
UCZ1V681MNQ1MS is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UCZ1V681MNJ1MS | Nichicon | CAP ALUM 35V POLAR | 100% | View |
| EMVH350GDA681MMH0S | United Chemi-Con | CAP ALUM 680UF 20% 35V SMD | 88% | View |
| EMVH250GDA681MMH0S | United Chemi-Con | CAP ALUM 680UF 20% 25V SMD | 77% | View |
| EEV-TG1E681M | Panasonic Electronic Components | CAP ALUM 680UF 20% 25V SMD | 75% | View |
| 25TGV680M12.5X13.5 | Rubycon | CAP ALUM 680UF 20% 25V SMD | 61% | View |
| MAL214099512E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 680UF 20% 16V SMD | 51% | View |
