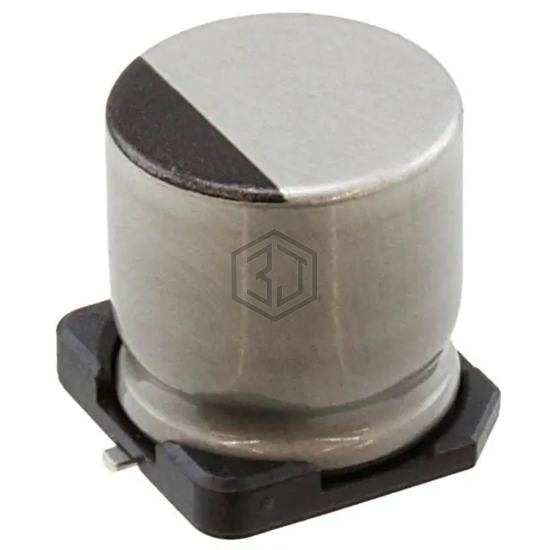

CAP ALUM 47UF 20% 80V SMD
UCZ1K470MCL1GS is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 47UF 20% 80V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - rated 80 V, package / case Radial, Can - SMD.
In Stock: 5,399
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 47 µF |
| Tolerance | ±20% |
| Voltage - Rated | 80 V |
| ESR (Equivalent Series Resistance) | 550mOhm |
| Lifetime @ Temp. | 3000 Hrs @ 125°C |
| Operating Temperature | -40°C ~ 125°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 57.5 mA @ 120 Hz |
| Ripple Current @ High Frequency | 115 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.413" (10.50mm) |
| Surface Mount Land Size | 0.406" L x 0.406" W (10.30mm x 10.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
UCZ1K470MCL1GS is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| VUJ470M1HTR-1010S | Surge | CAP ALUM 50V POLAR | 79% | View |
| UCZ1J470MCL1GS | Nichicon | CAP ALUM 47UF 20% 63V SMD | 74% | View |
| AEH1010470M080R | KYOCERA AVX | ALUMINUM CAP | 69% | View |
| RAVZF470M1TDC8002U | Taiyo Yuden | CAP ALUM 47UF 20% 25V SMD | 69% | View |
| RAVZF470M1EDC8002U | Taiyo Yuden | CAP ALUM 47UF 20% 16V SMD | 69% | View |
| EMVH160ADA470MF60G | United Chemi-Con | CAP ALUM 47UF 20% 16V SMD | 64% | View |
