CAP ALUM 390UF 20% 80V SMD

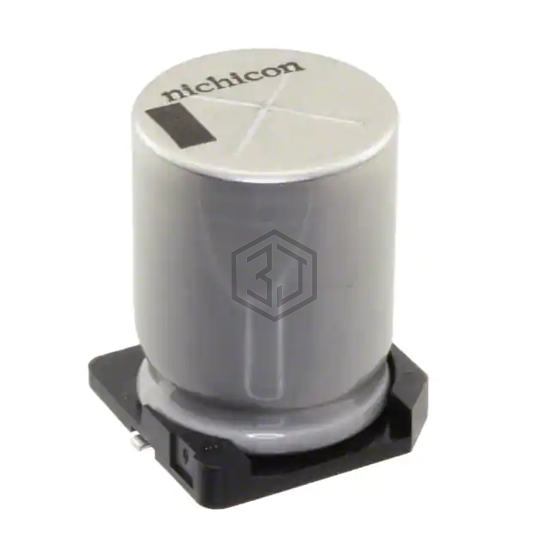

UCZ1K391MNQ1MS is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 390UF 20% 80V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - rated 80 V, package / case Radial, Can - SMD.
In Stock: 2,562
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 390 µF |
| Tolerance | ±20% |
| Voltage - Rated | 80 V |
| ESR (Equivalent Series Resistance) | 120mOhm @ 100kHz |
| Lifetime @ Temp. | 4000 Hrs @ 125°C |
| Operating Temperature | -40°C ~ 125°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 800 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.6 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 0.886" (22.50mm) |
| Surface Mount Land Size | 0.673" L x 0.673" W (17.10mm x 17.10mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
UCZ1K391MNQ1MS is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EMHB800ARA391MLN0S | Chemi-Con | CAP ALUM 390UF 20% 80V SMD | 95% | View |
| UYA1K431MNJ1MS | Nichicon | CAP ALUM 430UF 20% 80V SMD | 93% | View |
| EMHS630ARA431MLH0S | Chemi-Con | CAP ALUM 430UF 20% 63V SMD | 88% | View |
| 80TGV430M16X21.5 | Rubycon | CAP ALUM 80V POLAR | 86% | View |
| EEE-TP1K391V | Panasonic Electronic Components | CAP ALUM 390UF 20% 80V SMD | 82% | View |
| EEE-TP1K391M | Panasonic Electronic Components | CAP ALUM 390UF 20% 80V SMD | 82% | View |
Submit your RFQ for UCZ1K391MNQ1MS and get a quote within 24 hours.
