CAP ALUM 33UF 20% 80V SMD

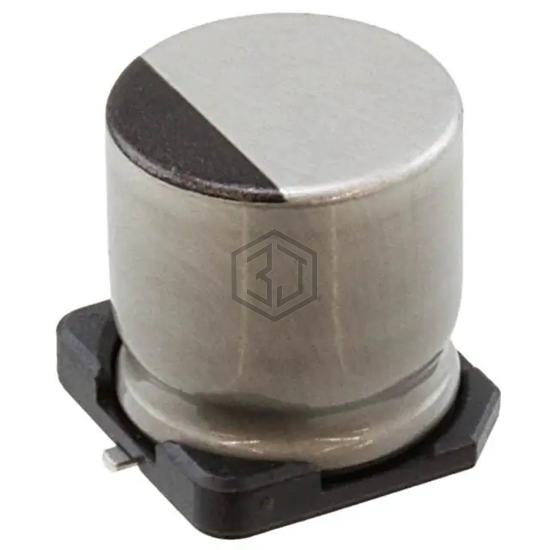

UCZ1K330MCL6GS is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 33UF 20% 80V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - rated 80 V, package / case Radial, Can - SMD.
In Stock: 9,223
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 33 µF |
| Tolerance | ±20% |
| Voltage - Rated | 80 V |
| ESR (Equivalent Series Resistance) | 750mOhm |
| Lifetime @ Temp. | 3000 Hrs @ 125°C |
| Operating Temperature | -40°C ~ 125°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 35 mA @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.413" (10.50mm) |
| Surface Mount Land Size | 0.406" L x 0.406" W (10.30mm x 10.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
UCZ1K330MCL6GS is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UCZ1K330MCS6GS | Nichicon | CAP ALUM 33UF 20% 80V SMD | 100% | View |
| EEE-TK1H330AP | Panasonic Electronic Components | CAP ALUM 33UF 20% 50V SMD | 70% | View |
| 35THV33M6.3X6.1 | Rubycon | CAP ALUM 33UF 20% 35V SMD | 68% | View |
| UUE1H330MNS1GS | Nichicon | CAP ALUM 33UF 20% 50V SMD | 63% | View |
| EMVH101ADA330MJA0G | United Chemi-Con | CAP ALUM 33UF 20% 100V SMD | 55% | View |
| EEE-TG1H330P | Panasonic Electronic Components | CAP ALUM 33UF 20% 50V SMD | 51% | View |
Submit your RFQ for UCZ1K330MCL6GS and get a quote within 24 hours.
