CAP ALUM 33UF 20% 50V SMD

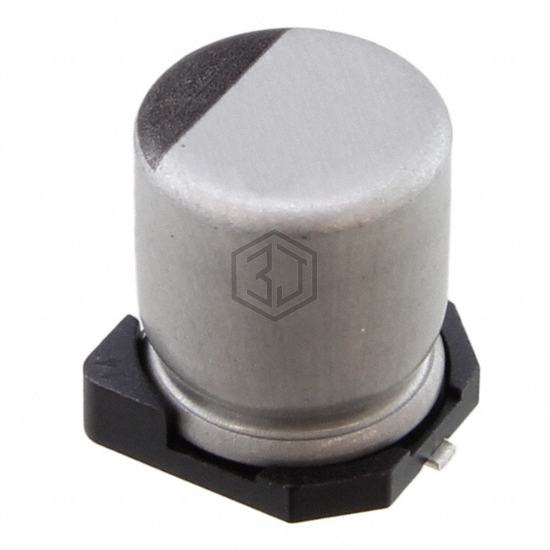

UCZ1H330MCL6GS is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 33UF 20% 50V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - rated 50 V, package / case Radial, Can - SMD.
In Stock: 1,268
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 33 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | 500mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 125°C |
| Operating Temperature | -40°C ~ 125°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 98.5 mA @ 120 Hz |
| Ripple Current @ High Frequency | 197 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.323" (8.20mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
UCZ1H330MCL6GS is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 336UVK050MFE | Cornell Dubilier / Illinois Capacitor | CAP ALUM 33UF 20% 50V SMD | 93% | View |
| UCZ1V330MCS1GS | Nichicon | CAP ALUM 33UF 20% 35V SMD | 89% | View |
| UCZ1H330MCL1GS | Nichicon | CAP ALUM 33UF 20% 50V SMD | 85% | View |
| EMVH350ADA330MH63G | United Chemi-Con | CAP ALUM 33UF 20% 35V SMD | 74% | View |
| EDT336M035S9LAA | KEMET | CAP ALUM 33UF 20% 35V SMD | 68% | View |
| EEE-TG1J330UP | Panasonic Electronic Components | CAP ALUM 33UF 20% 63V SMD | 67% | View |
Submit your RFQ for UCZ1H330MCL6GS and get a quote within 24 hours.
