CAP ALUM 1200UF 20% 50V SMD

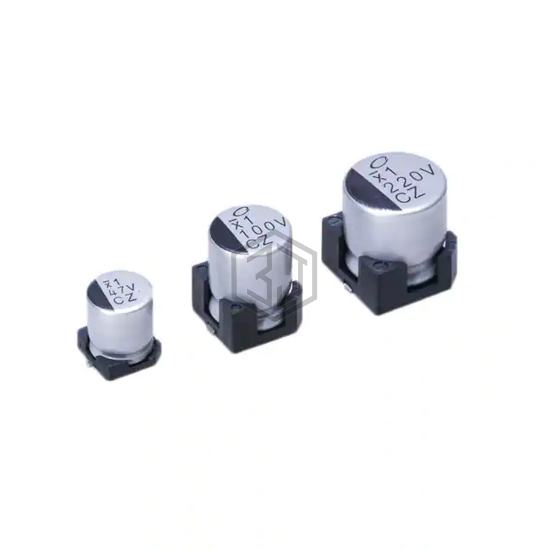

UCZ1H122MNS1MS is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 1200UF 20% 50V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - rated 50 V, package / case Radial, Can - SMD.
In Stock: 8,855
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 1200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | 38mOhm @ 100kHz |
| Lifetime @ Temp. | 4000 Hrs @ 125°C |
| Operating Temperature | -40°C ~ 125°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.45 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.9 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 0.886" (22.50mm) |
| Surface Mount Land Size | 0.752" L x 0.752" W (19.10mm x 19.10mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
UCZ1H122MNS1MS is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UCZ1H122MNQ1ZD | Nichicon | CAP ALUM 1200UF 20% 50V SMD | 100% | View |
| UCZ1H122MNJ1MS | Nichicon | CAP ALUM 50V POLAR | 100% | View |
| UCZ1V122MNJ1MS | Nichicon | CAP ALUM 35V POLAR | 84% | View |
| MAL214699009E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1200UF 20% 35V SMD | 64% | View |
| MAL224699009E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1200UF 20% 35V SMD | 64% | View |
| EMXB350ARA122MMN0S | United Chemi-Con | CAP ALUM 1200UF 20% 35V SMD | 56% | View |
Submit your RFQ for UCZ1H122MNS1MS and get a quote within 24 hours.
