CAP ALUM 3300UF 20% 25V SMD

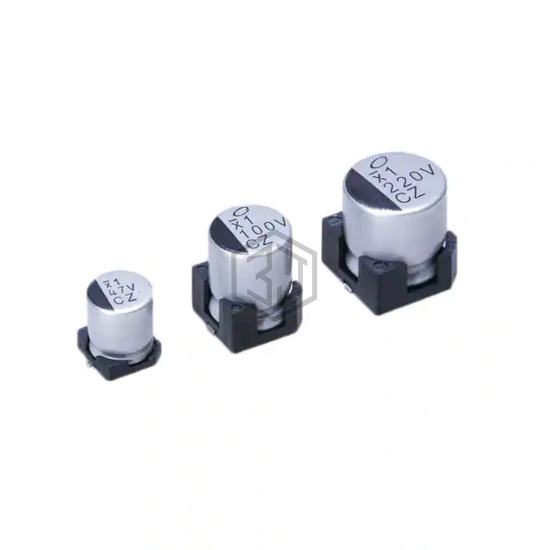

UCZ1E332MNS1MS is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 3300UF 20% 25V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - rated 25 V, package / case Radial, Can - SMD.
In Stock: 64
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 3300 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | 32mOhm @ 100kHz |
| Lifetime @ Temp. | 4000 Hrs @ 125°C |
| Operating Temperature | -40°C ~ 125°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.625 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.25 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 0.886" (22.50mm) |
| Surface Mount Land Size | 0.752" L x 0.752" W (19.10mm x 19.10mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
Submit your RFQ for UCZ1E332MNS1MS and get a quote within 24 hours.
