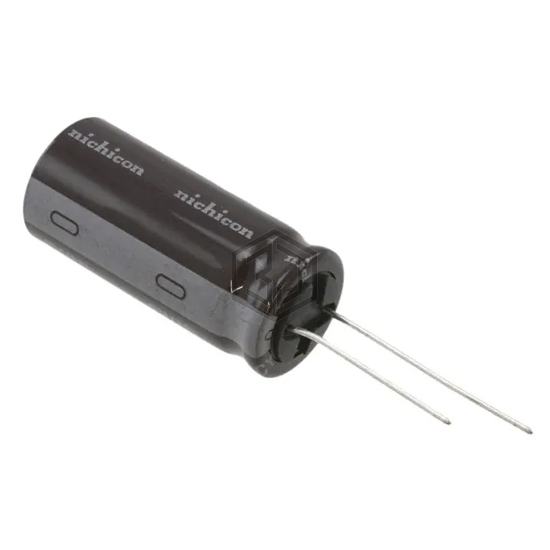

CAP ALUM 82UF 20% 420V RADIAL
UCYW6820MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 82UF 20% 420V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 420 V, package / case Radial, Can.
In Stock: 2
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 82 µF |
| Tolerance | ±20% |
| Voltage - Rated | 420 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 12000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 725 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.45 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.457" (37.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 420BXW82MEFR14.5X40 | Rubycon | CAP ALUM 82UF 20% 420V RADIAL | 95% | View |
| 420HXW82MEFR16X25 | Rubycon | CAP ALUM 82UF 20% 420V RADIAL | 95% | View |
| 450CXW82MEFR16X31.5 | Rubycon | CAP ALUM 82UF 20% 450V RADIAL | 92% | View |
| EKHE451ELL820MK45S | United Chemi-Con | RADIAL ALUMINUM ELECTROLYTIC CAP | 91% | View |
| B43504A826M80 | EPCOS - TDK Electronics | CAP ALUM 82UF 20% 420V SNAP | 91% | View |
| B43504A9826M67 | EPCOS - TDK Electronics | CAP ALUM 82UF 20% 400V SNAP | 89% | View |
Submit your RFQ for UCYW6820MHD and get a quote within 24 hours.
