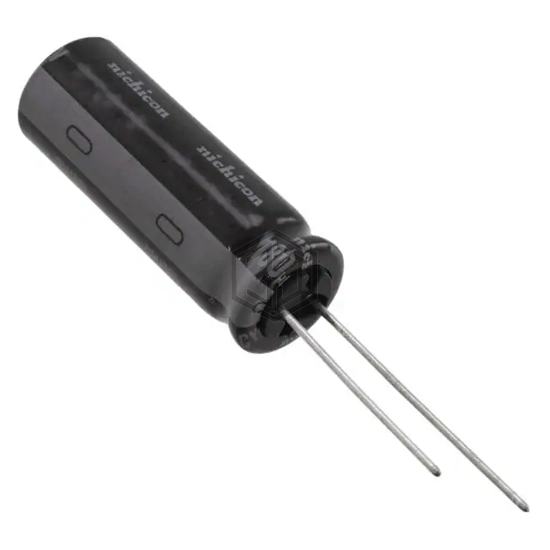

CAP ALUM 47UF 20% 420V RADIAL
UCYW6470MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 47UF 20% 420V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 420 V, package / case Radial, Can.
In Stock: 5,361
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 47 µF |
| Tolerance | ±20% |
| Voltage - Rated | 420 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 12000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 505 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.01 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.457" (37.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKXL451ELL470MU25S | United Chemi-Con | CAP ALUM 47UF 20% 450V RADIAL TH | 93% | View |
| 450TXW47MEFR12.5X40 | Rubycon | CAP ALUM 47UF 20% 450V RADIAL | 89% | View |
| MAL214264793E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 47UF 20% 250V RADIAL | 67% | View |
| UAQ2G470MRD3 | Nichicon | CAP ALUM 47UF 20% 400V RADIAL | 65% | View |
| 672D476H200FV3J | Vishay Sprague | CAP ALUM 47UF 200V RADIAL | 56% | View |
| ELXY160ETC470MF05D | United Chemi-Con | CAP ALUM 47UF 20% 16V RADIAL | 56% | View |
