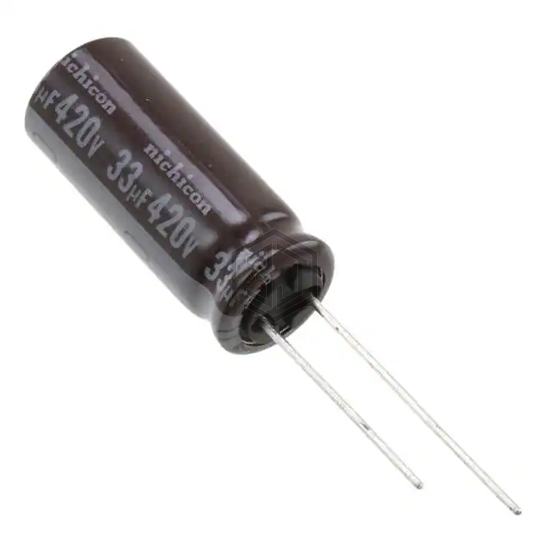

CAP ALUM 33UF 20% 420V RADIAL
UCYW6330MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 33UF 20% 420V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 420 V, package / case Radial, Can.
In Stock: 4,454
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 33 µF |
| Tolerance | ±20% |
| Voltage - Rated | 420 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 12000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 400 mA @ 120 Hz |
| Ripple Current @ High Frequency | 800 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.299" (33.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43896C2336M | EPCOS - TDK Electronics | CAP ALUM 33UF 20% 250V RADIAL | 76% | View |
| MAL215297336E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 33UF 20% 450V RADIAL | 75% | View |
| MAL215266339E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 33UF 20% 400V RADIAL | 74% | View |
| UCS2C330MPD1TD | Nichicon | CAP ALUM 33UF 20% 160V RADIAL | 69% | View |
| 100ZLJ33M8X11.5 | Rubycon | CAP ALUM 33UF 20% 100V RADIAL | 63% | View |
| 510D336M025BB3D | Vishay Sprague | CAP ALUM 33UF 20% 25V RADIAL | 56% | View |
Submit your RFQ for UCYW6330MHD and get a quote within 24 hours.
