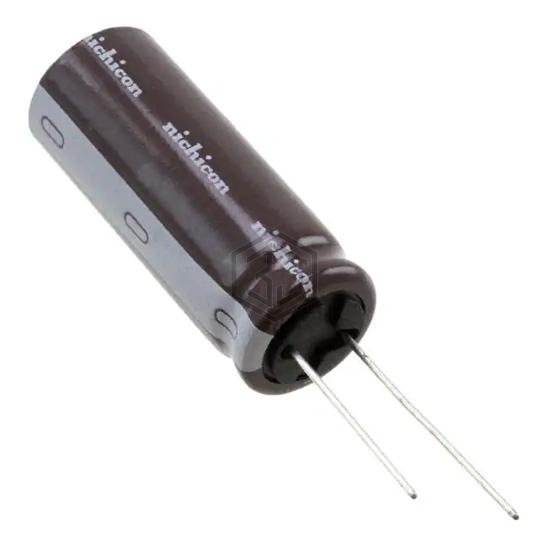

CAP ALUM 82UF 20% 450V RADIAL
UCY2W820MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 82UF 20% 450V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 450 V, package / case Radial, Can.
In Stock: 7,556
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 82 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 12000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 750 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.5 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.634" (41.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL225957829E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 82UF 20% 450V SNAP | 93% | View |
| 500TXW82MEFR18X40 | Rubycon | CAP ALUM 82UF 20% 500V RADIAL TH | 93% | View |
| B43508A5826M7 | EPCOS - TDK Electronics | CAP ALUM 82UF 20% 450V SNAP | 92% | View |
| 450QXW82MEFR16X31.5 | Rubycon | CAP ALUM 82UF 20% 450V RADIAL | 86% | View |
| 400QXW82MEFR14.5X31.5 | Rubycon | CAP ALUM 82UF 20% 400V RADIAL | 80% | View |
| UCY2E820MHD3 | Nichicon | CAP ALUM 82UF 20% 250V RADIAL | 78% | View |
Submit your RFQ for UCY2W820MHD and get a quote within 24 hours.
