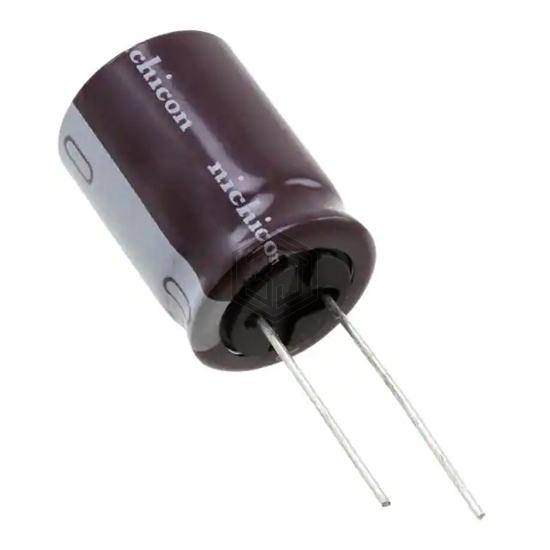

CAP ALUM 56UF 20% 450V RADIAL
UCY2W560MHD3 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 56UF 20% 450V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 450 V, package / case Radial, Can.
In Stock: 3,985
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 56 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 12000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 560 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.12 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 1.043" (26.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 450LXW56MEFR10X50 | Rubycon | CAP ALUM 56UF 20% 450V RADIAL | 98% | View |
| 420LXW56MEFR14.5X25 | Rubycon | CAP ALUM 56UF 20% 420V RADIAL | 95% | View |
| EKXL401ELL560ML20S | United Chemi-Con | CAP ALUM 56UF 20% 400V RADIAL TH | 91% | View |
| UCY2V560MHD | Nichicon | CAP ALUM 56UF 20% 350V RADIAL | 90% | View |
| EKXJ351ELL560MK30S | United Chemi-Con | CAP ALUM 56UF 20% 350V RADIAL | 87% | View |
| EKXJ221ELL560MJ25S | United Chemi-Con | CAP ALUM 56UF 20% 220V RADIAL | 61% | View |
Submit your RFQ for UCY2W560MHD3 and get a quote within 24 hours.
