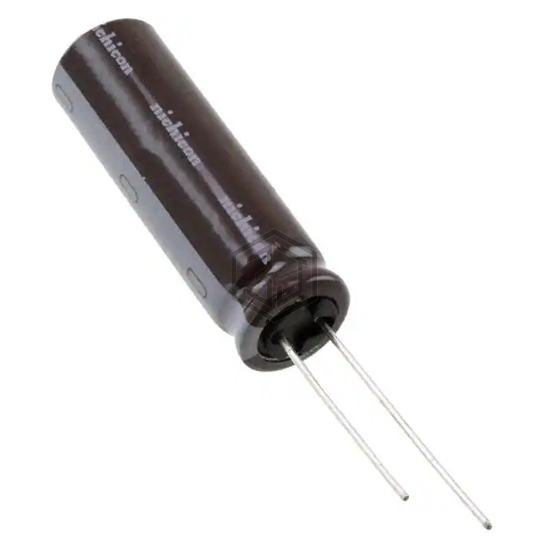

CAP ALUM 47UF 20% 450V RADIAL
UCY2W470MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 47UF 20% 450V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 450 V, package / case Radial, Can.
In Stock: 2,231
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 47 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 12000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 525 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.05 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.634" (41.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKXL451ELL470MJ50S | United Chemi-Con | CAP ALUM 47UF 20% 450V RADIAL TH | 95% | View |
| EKXG201ELL470MK20S | United Chemi-Con | CAP ALUM 47UF 20% 200V RADIAL | 70% | View |
| 100ZLJ47M8X16 | Rubycon | CAP ALUM 47UF 20% 100V RADIAL | 65% | View |
| UCY2D470MPD1TD | Nichicon | CAP ALUM 47UF 20% 200V RADIAL | 61% | View |
| 600D476F075DG5 | Vishay Sprague | CAP ALUM 47UF 75V AXIAL | 56% | View |
| 600D476F075DG4 | Vishay Sprague | CAP ALUM 47UF 75V AXIAL | 56% | View |
Submit your RFQ for UCY2W470MHD and get a quote within 24 hours.
