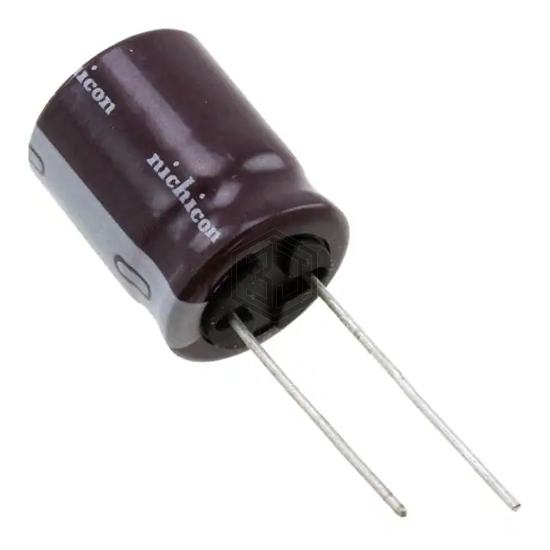

CAP ALUM 33UF 20% 450V RADIAL
UCY2W330MHD3TN is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 33UF 20% 450V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 450 V, package / case Radial, Can.
In Stock: 1,109
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 33 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 12000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 385 mA @ 120 Hz |
| Ripple Current @ High Frequency | 770 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 0.846" (21.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKXF451ELL330MM20S | United Chemi-Con | CAP ALUM 33UF 20% 450V RADIAL TH | 95% | View |
| EKXJ451ELL330MK30S | United Chemi-Con | CAP ALUM 33UF 20% 450V RADIAL | 93% | View |
| EG2A330MP50812ERSU | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 77% | View |
| MAL216061339E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 33UF 20% 50V RADIAL | 56% | View |
| MAL216031339E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 33UF 20% 50V RADIAL | 56% | View |
| 600D336G075DE5 | Vishay Sprague | CAP ALUM 33UF 75V AXIAL | 56% | View |
Submit your RFQ for UCY2W330MHD3TN and get a quote within 24 hours.
