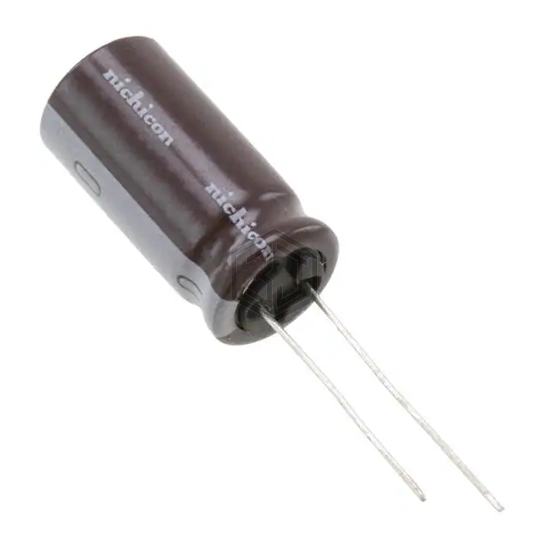

CAP ALUM 22UF 20% 450V RADIAL
UCY2W220MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 22UF 20% 450V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 450 V, package / case Radial, Can.
In Stock: 1,685
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 12000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 300 mA @ 120 Hz |
| Ripple Current @ High Frequency | 600 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.043" (26.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL214267229E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 22UF 20% 450V RADIAL | 93% | View |
| UCY2H220MHD | Nichicon | CAP ALUM 22UF 20% 500V RADIAL | 93% | View |
| UCS2G220MHD1TO | Nichicon | CAP ALUM 22UF 20% 400V RADIAL | 85% | View |
| SEK220M350ST | Cornell Dubilier Electronics (CDE) | CAP ALUM 22UF 20% 350V RADIAL | 84% | View |
| MAL215297225E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 22UF 20% 450V RADIAL | 77% | View |
| 420QXW22MEFR8X40 | Rubycon | CAP ALUM 22UF 20% 420V RADIAL | 76% | View |
Submit your RFQ for UCY2W220MHD and get a quote within 24 hours.
