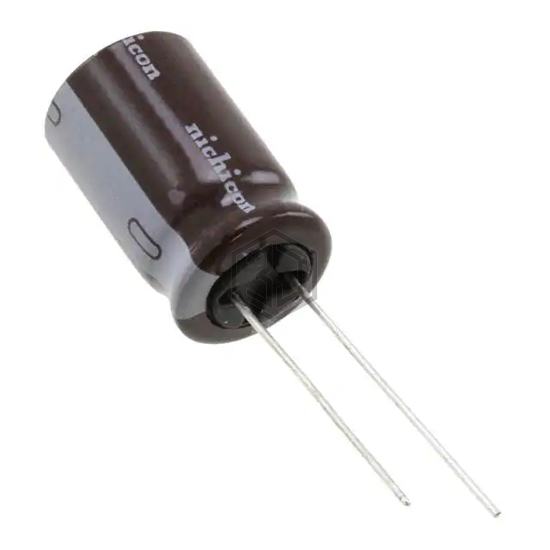

CAP ALUM 18UF 20% 450V RADIAL
UCY2W180MHD6 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 18UF 20% 450V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 450 V, package / case Radial, Can.
In Stock: 9,163
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 18 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 12000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 255 mA @ 120 Hz |
| Ripple Current @ High Frequency | 510 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.846" (21.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UCY2W180MHD6TO | Nichicon | CAP ALUM 18UF 20% 450V RADIAL | 100% | View |
| UCY2H180MHD3TN | Nichicon | CAP ALUM 18UF 20% 500V RADIAL | 94% | View |
| EKXJ421ELL180MJ30S | United Chemi-Con | CAP ALUM 18UF 20% 420V RADIAL | 93% | View |
| 350BXW18MEFR10X16 | Rubycon | CAP ALUM 18UF 20% 350V RADIAL | 75% | View |
| 420QXW18MEFR8X30 | Rubycon | CAP ALUM 18UF 20% 420V RADIAL | 62% | View |
| 100ZLJ18MTA6.3X11 | Rubycon | CAP ALUM 18UF 20% 100V RADIAL | 59% | View |
Submit your RFQ for UCY2W180MHD6 and get a quote within 24 hours.
