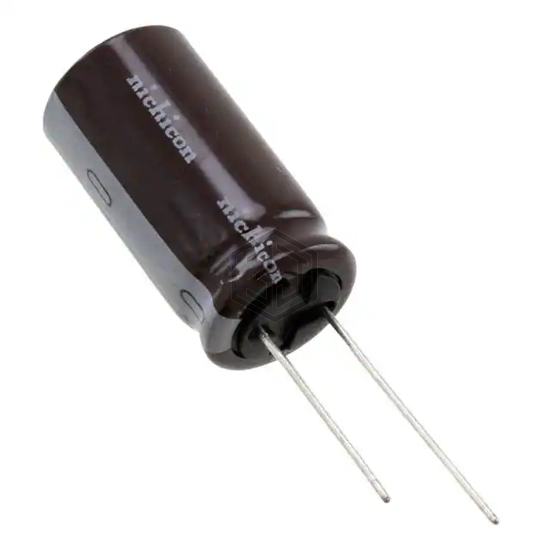

CAP ALUM 82UF 20% 350V RADIAL
UCY2V820MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 82UF 20% 350V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 350 V, package / case Radial, Can.
In Stock: 2,066
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 82 µF |
| Tolerance | ±20% |
| Voltage - Rated | 350 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 12000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 740 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.48 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.299" (33.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UCY2W820MHD6 | Nichicon | CAP ALUM 82UF 20% 450V RADIAL | 92% | View |
| 450LXW82MEFR14.5X35 | Rubycon | CAP ALUM 82UF 20% 450V RADIAL | 90% | View |
| 450BXW82MEFR14.5X40 | Rubycon | CAP ALUM 82UF 20% 450V RADIAL | 87% | View |
| EKWA401ELL820MK40S | United Chemi-Con | RADIAL ALUMINUM ELECTROLYTIC CAP | 84% | View |
| EKWA451ELL820MK45S | United Chemi-Con | RADIAL ALUMINUM ELECTROLYTIC CAP | 82% | View |
| UCY2D820MHD3 | Nichicon | CAP ALUM 82UF 20% 200V RADIAL | 80% | View |
