CAP ALUM 56UF 20% 350V RADIAL

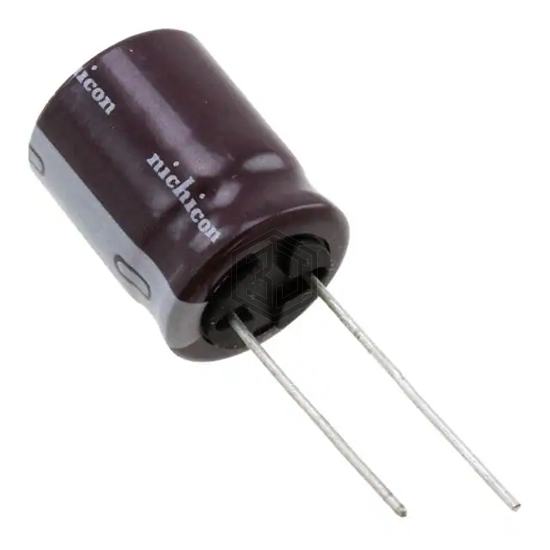

UCY2V560MHD6 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 56UF 20% 350V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 350 V, package / case Radial, Can.
In Stock: 7,431
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 56 µF |
| Tolerance | ±20% |
| Voltage - Rated | 350 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 12000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 565 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.13 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 0.846" (21.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 420HXW56MEFR16X20 | Rubycon | CAP ALUM 56UF 20% 420V RADIAL | 90% | View |
| 450BXW56MEFR14.5X30 | Rubycon | CAP ALUM 56UF 20% 450V RADIAL | 87% | View |
| EKXL451ELL560MU30S | United Chemi-Con | CAP ALUM 56UF 20% 450V RADIAL TH | 87% | View |
| EGXF351ELL560MM20S | United Chemi-Con | CAP ALUM 56UF 20% 350V RADIAL TH | 86% | View |
| LP560M450A1P3 | Cornell Dubilier Electronics (CDE) | CAP ALUM 56UF 20% 450V SNAP | 84% | View |
| 420QXW56MEFR12.5X30 | Rubycon | CAP ALUM 56UF 20% 420V RADIAL | 78% | View |
