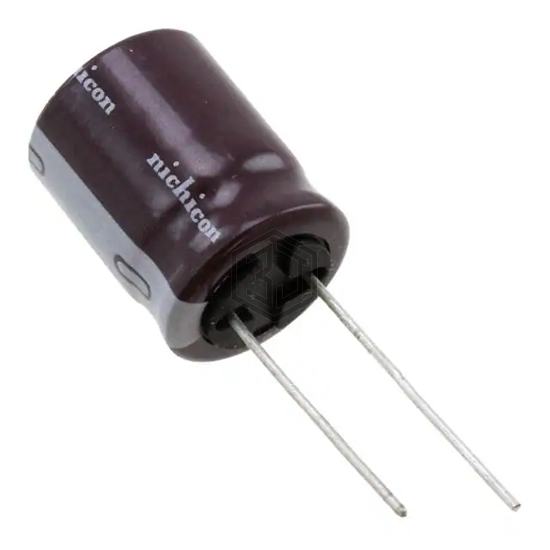

CAP ALUM 47UF 20% 350V RADIAL
UCY2V470MHD3 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 47UF 20% 350V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 350 V, package / case Radial, Can.
In Stock: 4,797
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 47 µF |
| Tolerance | ±20% |
| Voltage - Rated | 350 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 12000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 540 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.08 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 0.846" (21.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKXN451ELL470MK25S | Chemi-Con | CAP ALUM 47UF 20% 450V RADIAL TH | 87% | View |
| RLD470M2GBK-1050S | Surge | CAP ALUM 400V POLAR | 87% | View |
| 476KFM450M | Cornell Dubilier Knowles | ELECTROLYTIC/IC | 83% | View |
| SEK470M063ST | Cornell Dubilier Electronics (CDE) | CAP ALUM 47UF 20% 63V RADIAL | 56% | View |
| 672D476H040CD5CE3 | Vishay Sprague | CAP ALUM 47UF 40V RADIAL | 56% | View |
| 100YXJ47MT78X16 | Rubycon | CAP ALUM 47UF 20% 100V RADIAL | 55% | View |
Submit your RFQ for UCY2V470MHD3 and get a quote within 24 hours.
