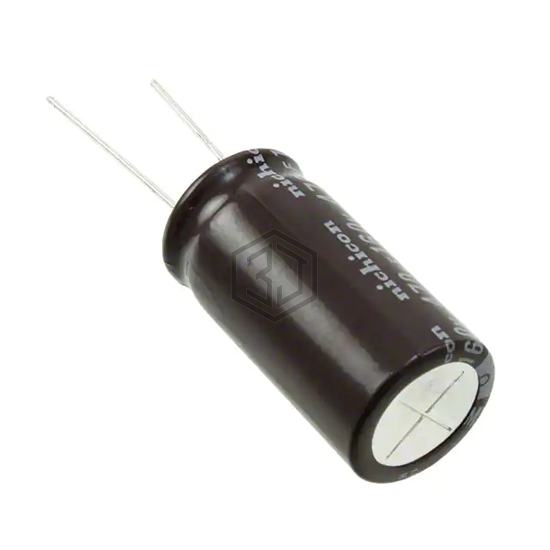

CAP ALUM 56UF 20% 500V RADIAL
UCY2H560MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 56UF 20% 500V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 500 V, package / case Radial, Can.
In Stock: 2,442
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 56 µF |
| Tolerance | ±20% |
| Voltage - Rated | 500 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 12000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 480 mA @ 120 Hz |
| Ripple Current @ High Frequency | 960 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 1.457" (37.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43547A6566M000 | EPCOS - TDK Electronics | CAP ALUM 56UF 20% 500V SNAP | 97% | View |
| EKWA451ELL560MK35S | United Chemi-Con | RADIAL ALUMINUM ELECTROLYTIC CAP | 94% | View |
| 420LXW56MEFR12.5X30 | Rubycon | CAP ALUM 56UF 20% 420V RADIAL | 90% | View |
| 400BXW56MEFR12.5X35 | Rubycon | CAP ALUM 56UF 20% 400V RADIAL | 84% | View |
| 350TXW56MEFR10X40 | Rubycon | CAP ALUM 56UF 20% 350V RADIAL | 81% | View |
| UCY2C560MPD | Nichicon | CAP ALUM 56UF 20% 160V RADIAL | 68% | View |
Submit your RFQ for UCY2H560MHD and get a quote within 24 hours.
