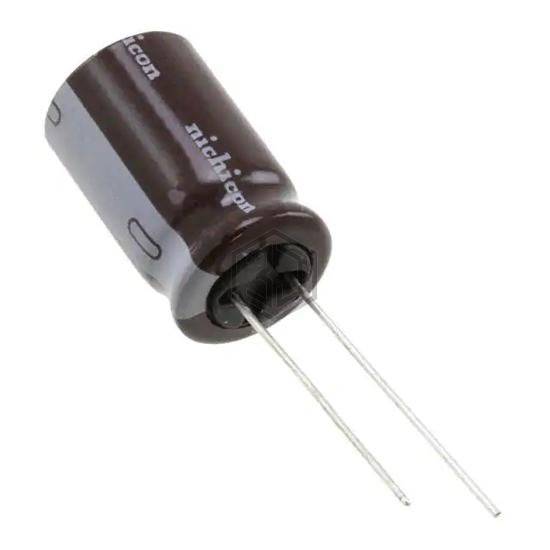

CAP ALUM 10UF 20% 500V RADIAL
UCY2H100MHD1TO is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 10UF 20% 500V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 500 V, package / case Radial, Can.
In Stock: 8,622
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 10 µF |
| Tolerance | ±20% |
| Voltage - Rated | 500 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 160 mA @ 120 Hz |
| Ripple Current @ High Frequency | 320 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.846" (21.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UCY2H100MHD | Nichicon | CAP ALUM 10UF 20% 500V RADIAL | 100% | View |
| EV2A100MPN0812F6U | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 67% | View |
| EKMG401ELL100MJ20S | United Chemi-Con | CAP ALUM 10UF 20% 400V RADIAL | 57% | View |
| SEK100M063ST | Cornell Dubilier Electronics (CDE) | CAP ALUM 10UF 20% 63V RADIAL | 56% | View |
| UBT1H100MPD1TA | Nichicon | CAP ALUM 10UF 20% 50V RADIAL | 51% | View |
| UBT1H100MPD8 | Nichicon | CAP ALUM 10UF 20% 50V RADIAL | 51% | View |
Submit your RFQ for UCY2H100MHD1TO and get a quote within 24 hours.
