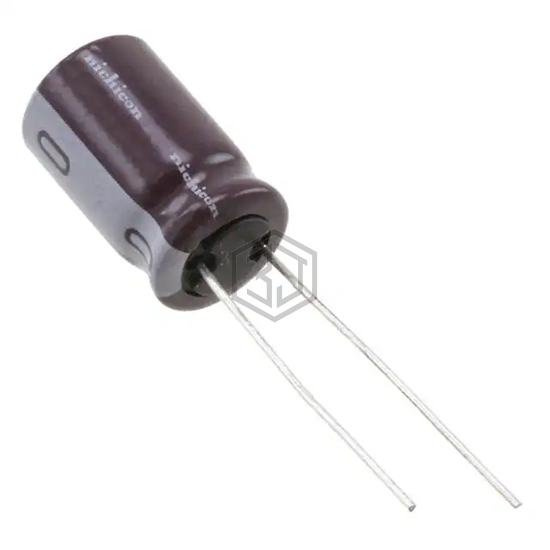

CAP ALUM 6.8UF 20% 400V RADIAL
UCY2G6R8MPD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 6.8UF 20% 400V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 400 V, package / case Radial, Can.
In Stock: 2,913
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 6.8 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 12000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 140 mA @ 120 Hz |
| Ripple Current @ High Frequency | 280 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.689" (17.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 400AX6.8MEFC8X10.8 | Rubycon | CAP ALUM 6.8UF 20% 400V RADIAL | 100% | View |
| EKXG401ELL6R8MJ16S | United Chemi-Con | CAP ALUM 6.8UF 20% 400V RADIAL | 94% | View |
| 400AX8.2MEFC10X9 | Rubycon | CAP ALUM 8.2UF 20% 400V RADIAL | 85% | View |
| 400AX7.5MEFC8X10.8 | Rubycon | CAP ALUM 7.5UF 20% 400V RADIAL | 59% | View |
| 100ZLJ8.2M5X11 | Rubycon | CAP ALUM 8.2UF 20% 100V RAD TH | 56% | View |
| 100ZLJ8R2M5X11 | Rubycon | CAP ALUM 8.2UF 20% 100V RADIAL | 56% | View |
