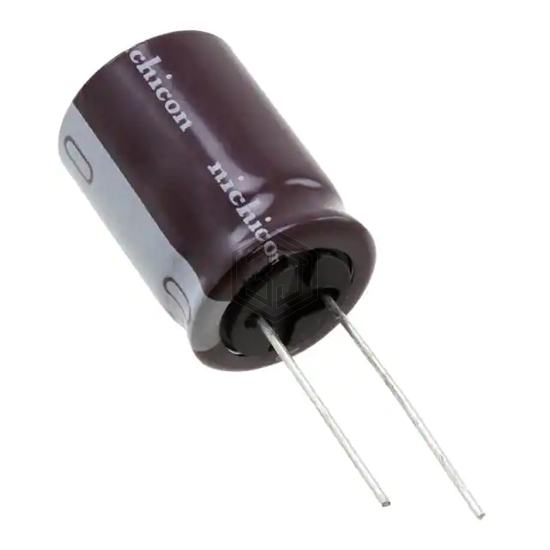

CAP ALUM 68UF 20% 400V RADIAL
UCY2G680MHD3TN is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 68UF 20% 400V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 400 V, package / case Radial, Can.
In Stock: 6,354
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 68 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 12000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 735 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.47 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 1.043" (26.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UCYW6680MHD3 | Nichicon | CAP ALUM 68UF 20% 420V RADIAL | 90% | View |
| 420LXW68MEFR10X50 | Rubycon | CAP ALUM 68UF 20% 420V RADIAL | 90% | View |
| EKWA421ELL680MK35S | United Chemi-Con | RADIAL ALUMINUM ELECTROLYTIC CAP | 80% | View |
| UCY2E680MHD3 | Nichicon | CAP ALUM 68UF 20% 250V RADIAL | 80% | View |
| UCY2D680MHD3 | Nichicon | CAP ALUM 68UF 20% 200V RADIAL | 73% | View |
| UCY2C680MPD1TD | Nichicon | CAP ALUM 68UF 20% 160V RADIAL | 56% | View |
Submit your RFQ for UCY2G680MHD3TN and get a quote within 24 hours.
