CAP ALUM 68UF 20% 400V RADIAL

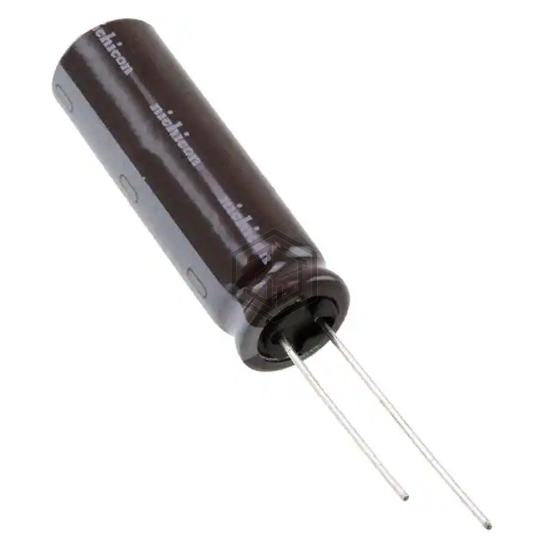

UCY2G680MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 68UF 20% 400V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 400 V, package / case Radial, Can.
In Stock: 3,995
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 68 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 12000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 720 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.44 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.634" (41.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKXG401ELL680MM25S | United Chemi-Con | CAP ALUM 68UF 20% 400V RADIAL | 95% | View |
| 400HXW68MEFR10X45 | Rubycon | CAP ALUM 68UF 20% 400V RADIAL | 87% | View |
| EGXF351ELL680MU35S | United Chemi-Con | CAP ALUM 68UF 20% 350V RADIAL TH | 86% | View |
| B43504A9686M80 | EPCOS - TDK Electronics | CAP ALUM 68UF 20% 400V SNAP | 86% | View |
| B43504A5686M87 | EPCOS - TDK Electronics | CAP ALUM 68UF 20% 450V SNAP | 83% | View |
| B43504A5686M62 | EPCOS - TDK Electronics | CAP ALUM 68UF 20% 450V SNAP | 83% | View |
Submit your RFQ for UCY2G680MHD and get a quote within 24 hours.
