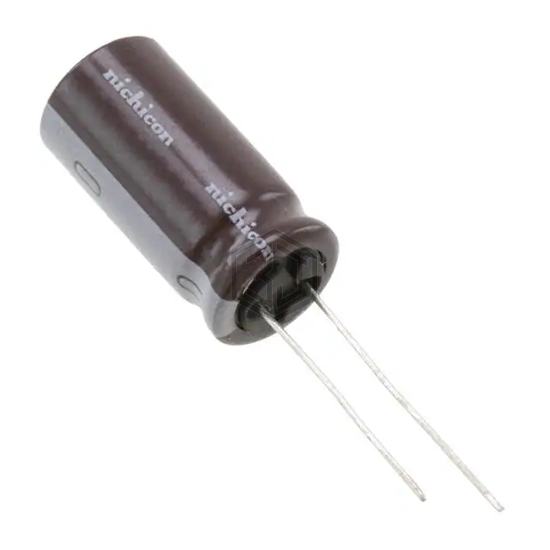

CAP ALUM 39UF 20% 400V RADIAL
UCY2G390MHD9 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 39UF 20% 400V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 400 V, package / case Radial, Can.
In Stock: 3,720
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 39 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 12000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 385 mA @ 120 Hz |
| Ripple Current @ High Frequency | 770 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.043" (26.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 420LXW39MEFR10X30 | Rubycon | CAP ALUM 39UF 20% 420V RADIAL | 96% | View |
| UCY2H390MHD | Nichicon | CAP ALUM 39UF 20% 500V RADIAL | 93% | View |
| EKXJ421ELL390MJ50S | United Chemi-Con | CAP ALUM 39UF 20% 420V RADIAL | 93% | View |
| UCY2V390MHD1TO | Nichicon | CAP ALUM 39UF 20% 350V RADIAL | 88% | View |
| 350TXW39MEFR8X45 | Rubycon | CAP ALUM 39UF 20% 350V RADIAL | 87% | View |
| 500HXW39MEFR18X20 | Rubycon | CAP ALUM 39UF 20% 500V RADIAL | 86% | View |
Submit your RFQ for UCY2G390MHD9 and get a quote within 24 hours.
