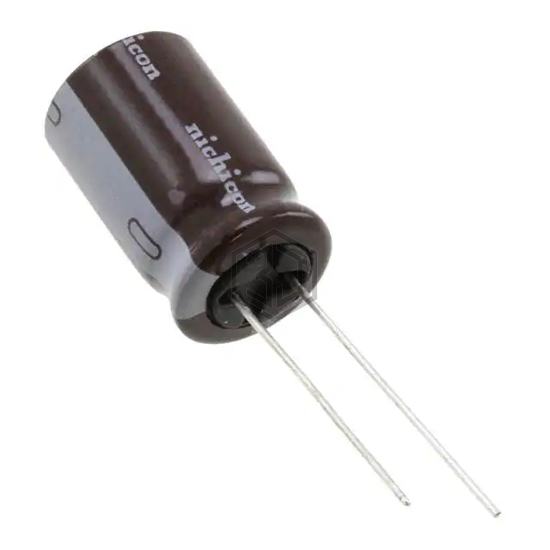

CAP ALUM 27UF 20% 400V RADIAL
UCY2G270MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 27UF 20% 400V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 400 V, package / case Radial, Can.
In Stock: 8,677
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 27 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 12000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 360 mA @ 120 Hz |
| Ripple Current @ High Frequency | 720 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.846" (21.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UCYW6270MHD1TO | Nichicon | CAP ALUM 27UF 20% 420V RADIAL | 96% | View |
| EKXJ421ELL270MK25S | United Chemi-Con | CAP ALUM 27UF 20% 420V RADIAL | 93% | View |
| EKXL421ELL270MK20S | United Chemi-Con | CAP ALUM 27UF 20% 420V RADIAL TH | 93% | View |
| 450BXW27MEFR10X35 | Rubycon | CAP ALUM 27UF 20% 450V RADIAL | 91% | View |
| EKXJ401ELL270MJ30S | United Chemi-Con | CAP ALUM 27UF 20% 400V RADIAL | 89% | View |
| UCY2V270MPD | Nichicon | CAP ALUM 27UF 20% 350V RADIAL | 88% | View |
Submit your RFQ for UCY2G270MHD and get a quote within 24 hours.
