CAP ALUM 100UF 20% 400V RADIAL

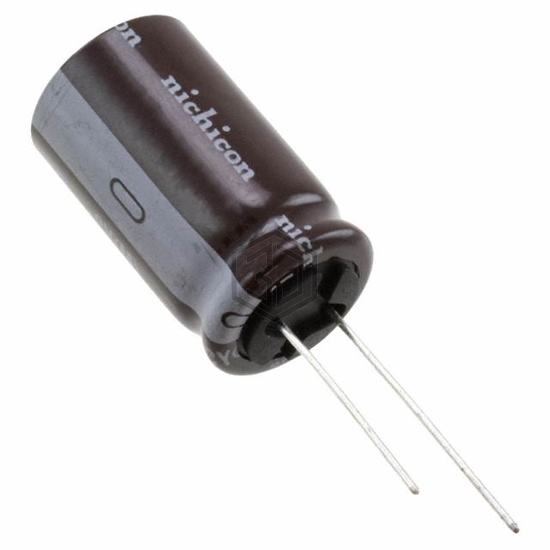

UCY2G101MHD6 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 100UF 20% 400V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 400 V, package / case Radial, Can.
In Stock: 2,385
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 100 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 12000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 875 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.75 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 1.299" (33.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43644A9107M000 | EPCOS - TDK Electronics | CAP ALUM 100UF 20% 400V SNAP | 90% | View |
| 450HXW100MEFR18X25 | Rubycon | CAP ALUM 100UF 20% 450V RADIAL | 81% | View |
| EPAG401ELL101ML30S | United Chemi-Con | CAP ALUM 100UF 20% 400V RADIAL | 73% | View |
| URZ2E101MHD1TN | Nichicon | CAP ALUM 100UF 20% 250V RADIAL | 57% | View |
| 601D107F150FL7 | Vishay Sprague | CAP ALUM 100UF 150V AXIAL | 57% | View |
| 672D107H020CG5C | Vishay Sprague | CAP ALUM 100UF 20V RADIAL | 56% | View |
Submit your RFQ for UCY2G101MHD6 and get a quote within 24 hours.
